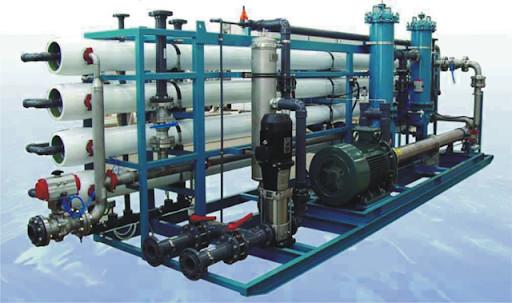

Energy Mining 380V 900L Industrial Ro Plant 10T Purification System
Stainless Steel 380V 900L 10T Purification System Industrial Water
Treatment Plant
Introduction:
1. Reverse osmosis is a kind of membrane separation technology
developed since the 1980s.
2. It mainly uses the osmosis principle if semi-transparent
membrane. A pressure that is called reverse osmosis.
3. The device that is composed of reverse osmosis components is
called reverse osmosis device.
Specification
| Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE,
Printing Shops, Construction works , Energy & Mining |
| Material: | Standard Wooden, Stainless Teel |
| Warranty: | 1 YEAR, One year |
| After-sales Service Provided: | Video technical support, Free spare parts, Online support |
| Application: | Water Purification |
| Capacity: | 250L~10000L/Customized |
| Voltage: | 380V /Customized |
| RO membrane: | MR |
| Certification: | CE ISO GMP |
| Water Yield: | 0.5-30(m3 /h ) |
| Working Water Tempterature (°C): | 5-35 |
| Minimum Water Inflow (m3 /h ): | 2.0-40 (m3 /h ) |
| Desalted Water (%) | 98% |
Feature Of Industrial Reverse Osmosis System
1. Modularity design, compact structure.
2. System can choose thermal disinfection RO membrane and thermal
disinfection EDI; the whole system can realize on-line hot water
disinfection.
3. Double softener can achieve series connections by using the
valve group and generation alternatively.
4. Feed water pump.1st stage high pressure pump and 2nd stage high
pressure pump are all controlled by frequency.
5. System terminal water production uses a dual supply mode
6. Using the middle water storage tank as the buffer tank to
realize cleaning on-line, dispensing with separate cleaning system.
7. Making stainless steel tube directly tensile bending in the
pipeline as far as possible, avoid welding.
8. For the connection of the pipeline and the spare parts, it
adopts the arc to protect the automatic welding track, and to
ensure the welding quality
9. Control system: PLC automatic control technology
10. Recording mode: You can choose the paperless recorder for
paperless records and also the paper record the key parameters in
real time
Procedure:
Raw water - raw water tank (user self-provided) - raw water pump-
multi-media filter- activated carbon filter- precision filter, the
reverse osmosis device - pure water storage tank (user
self-provided)
Primary and secondary reverse osmosis+EDI
1. Applied in areas where the salinity of raw water is high;
2. Good electric conductivity of water produced;
3. Low investment;
4. Low operating cose;
5. Good stability.
Feature:
--Textile, chemical industry, process water / chemical recycled
water, chemical products manufacturing purification and preparation
of water .
--Food and beverage industrial water, purified drinking water,
beverages, beer, liquor, health care products such as water
purification and preparation of water;
--Seawater, brackish water desalination islands, ships, offshore
drilling platforms, brackish water areas .
--Larger community, real estate property, schools, factories,
hospitals, and the restaurants, hotels, beauty salons, canteens and
other various types of enterprises and institutions.
--Integrated circuits, silicon wafers, display tubes and other
electronic components of electronic industrial water rinse water .
Advantages:
1. Fresh water quality, transparent processing, clean, health, and
meet GB requirements
2. High technical, stable operation, easy to maintain, long life
time
3. We can design upon customers requirement
4. Competitive price, more profit
Reverse Osmosis systems are used for
• Production of fresh water from sea water,
• Increasing water quality in industrial enterprises,
• Obtaining water at the desired quality in industrial and drinking
water,
• Preventing the formation of boiler stones in boilers,
• Regaining water in the recovery systems of wastewater,
• Obtaining feed-water of Ultra Purified water systems
• In sectors like Food, Textile, Glass, Automotive, Cosmetics,
Pharmaceuticals, Iron and Steel.
Technical Parameter
| Model | Capacity (T/H) | Power (KW) | Recovery (%) | One Stage Finished Water Conductivity (μs/cm) | Tow Stage Finished Water Conductivity (μs/cm) | EDI System Finished Water Conductivity (μs/cm) | Raw Water Conductivity (μs/cm) |
| RO-500 | 0.5 | 0.75 | 50 | ≤10 | 2-3 | ≤0.5 | ≤300 |
| RO-1000 | 1.0 | 2.2 | 75 |
| RO-2000 | 2.0 | 4.0 | 75 |
| RO-3000 | 3.0 | 5.5 | 75 |
| RO-5000 | 5.0 | 7.5 | 75 |
| RO-6000 | 6.0 | 7.5 | 75 |
| RO-10000 | 10.0 | 11.0 | 75 |
| RO-20000 | 20.0 | 15.0 | 75 |
Warranty: One year since the date of installation. If there is any
wearing part be broken within the warranty and isn’t caused by
un-properly operation, then the Seller would offer the new parts
for free.New Model High Efficient Tilting Vacuum Emulsifying Mixer
Machine For Cosmetic
Inspection: The buyer will do the machine inspection when the
machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer
to install or fix the machine locally in due course, the Buyer
should pay the round air ticket cost and arrange the hotel
accommodation as well as the means for Seller’s engineer.
Technical characteristics
1. Modularity design, compact structure.
2. System can choose thermal disinfection RO membrane and thermal
disinfection EDI; the whole system can realize on-line hot water
disinfection.
3. Double softener can achieve series connections by using the
valve group and generation alternatively.
4. Feed water pump.1st stage high pressure pump and 2nd stage high
pressure pump are all controlled by frequency.
5. System terminal water production uses a dual supply mode
6. Using the middle water storage tank as the buffer tank to
realize cleaning on-line, dispensing with separate cleaning system.
7. Making stainless steel tube directly tensile bending in the
pipeline as far as possible, avoid welding.
8. For the connection of the pipeline and the spare parts, it
adopts the arc to protect the automatic welding track, and to
ensure the welding quality
9. Control system: PLC automatic control technology
10. Recording mode: You can choose the paperless recorder for
paperless records and also the paper record the key parameters in
real time
